GT Series Linear Actuator

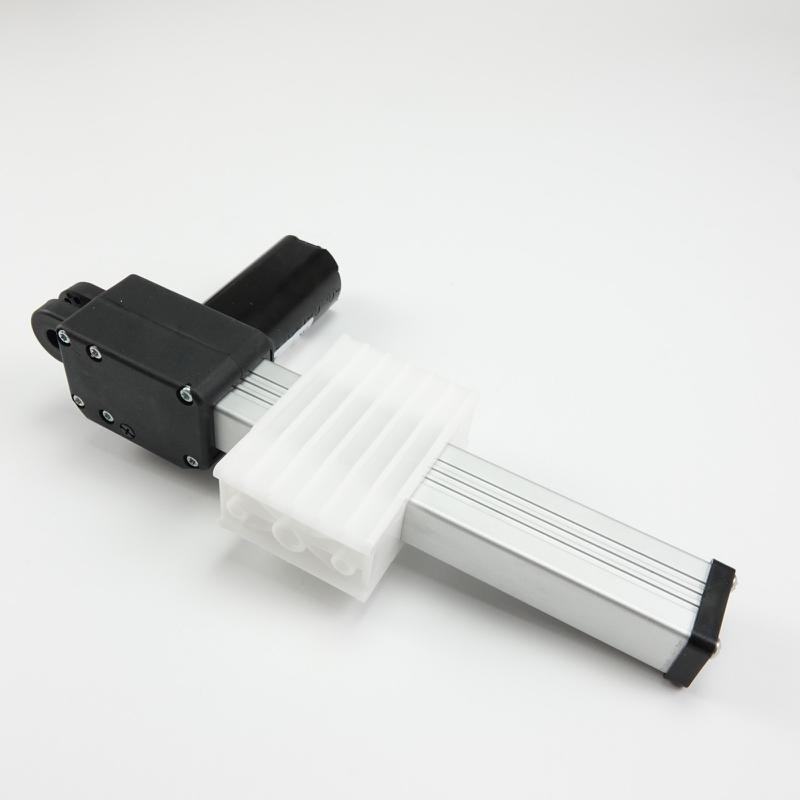

GT Series Linear Actuators have black plastic housing, white slider and natural anodized aluminum profile. Unlike traditional linear actuators their driving is the moving block. GT Series Linear actuators are widely used in geriatric chair, sofa, ergonomic furniture, pedestal furniture, home beds, massage equipment, and so on.




Specification of GT Series Linear actuators:

◇ Voltage: 24VDC Permanent Magnet Motor Drive

◇ Max Thrust: 700N, 1500N, 6000N

◇ Duty cycle: 10%, comment: 2 minutes continuous work followed by 18 minutes rest

◇ Ambient temperature -5°C (23F) to +40°C (104F)

◇ High Strength Plastic Housing and Gears

◇ Elegant and compact design with small installation size

◇ Minimum Installation Size 157mm (±2mm)

◇ Color: Black plastic housing, white slider and natural anodized Aluminum profile

◇ Built-in integral limit switch, not adjustable after leaving factory

◇ Standard protection class: IP 20

◇ Noise Level: Free load 48 dB

◇ CE Certificated 12V/24V Linear Actuator



Option:

◇ Standard Stroke: 200-400mm, can design according customer’s requirement

◇ Free Load Speed: 7mm-50mm/s

◇ Rated Load Speed: 5mm-40mm/s



Technical Specification



Spindle Pitch (mm)

Max Load (N)

Typical Amp Full Load (A)

Typical Speed (mm/S)

Self Load Max

 (N)

Push

Pull

Unloaded

Full Loaded

GT6000

4/1

6000

5000

3.5

7

5

4500N

GT1500

12/3

1500

1000

4.5

16

19

1000N

GT700

12/3

700

700

6

50

45

500N
