HT SERIES LINEAR ACTUATOR

HT Series Electric Linear Actuators (Electric Linear Actuator) are all-purpose products. They have smart design and excellent performance. They are widely used in furniture, home beds, office tables, massage equipment, sporting equipments and so on.

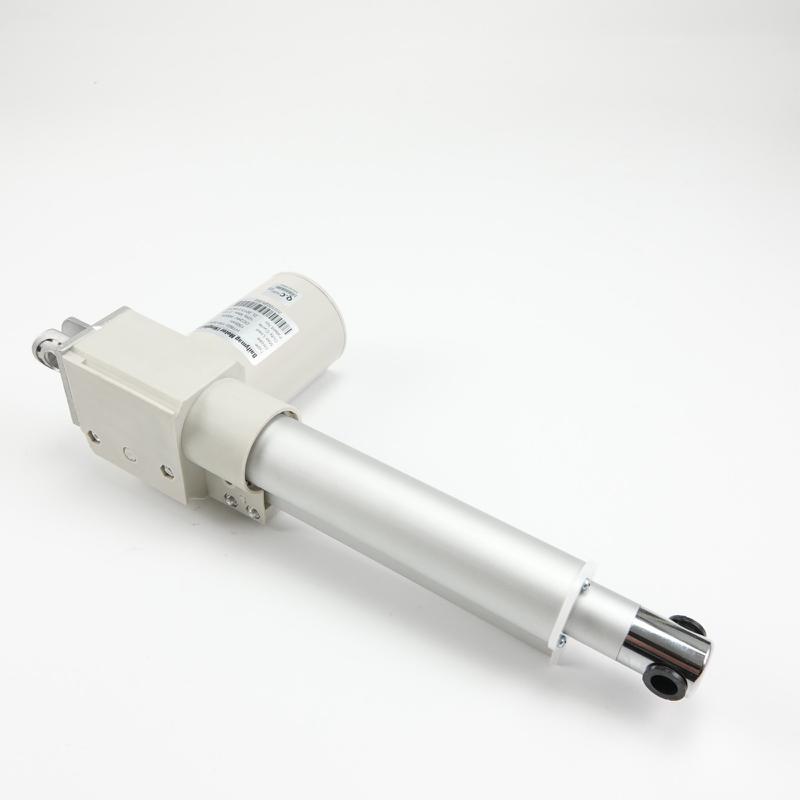

  Electric linear actuator (HT series)

Specification of HT Series Electric Linear Actuator:

Voltage: 24VDC or 12VDC, Permanent Magnet Motor Drive

Standard Stroke of Electric Linear Actuator: 100/150/200/250/300/350/400 mm, special stroke are available according to customer' requirement.

Max. Thrust of HT Electric Linear Actuator: 1000N, 3000N, 6000N

Free Load Speed of Electric Linear Actuator: 5mm/s18mm/s

Rated Load Speed of Electric Linear Actuator: 5mm/s

Duty cycle of Electric Linear Actuator: 10%

Ambient temperature -25°C (-13F) to +65°C (149F)

Standard protection class of Electric Linear Actuator: IP 44

Built-in integral limit switch, not adjustable after leaving factory

Low noise design, dB<53(A); The inspection method is in accordance with DS/EN ISO3746 while Electric Linear Actuator is unloaded.

CE Certificated Electric Linear Actuator



Standard Stroke of HT Electric Linear Actuator and Min. Install Dimension

Standard Stroke (mm)

50

100

150

200

300

350

400

Min. Install Dimension

 (mm)

HT-1000N

225

275

325

375

475

525

575

HT-3000N

225

275

325

375

475

525

575

HT-6000N

225

275

325

375

475

525

575



Technical Specification of HT Electric Linear Actuator

Item No.

Max. Thrust

(N)

Max. Pull

(N)

Self-Lock

(N)

Speed (mm/s)

Duty Cycle

(min/h)

Current at full load(A)

Full load

No load

HT-1000N

1000

750

750

12

18

6

4.5

HT-3000N

3000

2500

2000

8

12

6

4.5

HT-6000N

6000

4500

4000

5

6.5

6

4.5
