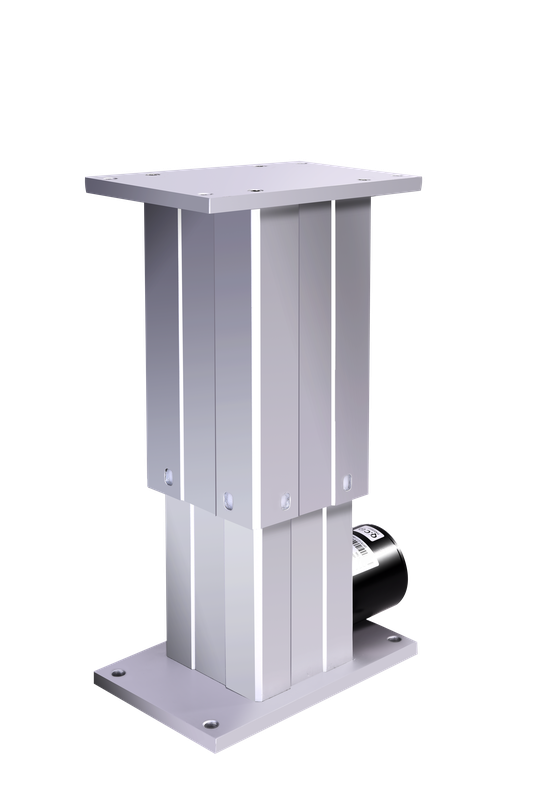

CT SERIES LINEAR ACTUATOR (LIFTING COLUMN)

CT Series Linear Actuators (Lifting Column) are widely used in Table height adjustments, TV, Medical Device, Optical equipment and so on.

Lifting Column

Specification of ST Series Linear actuators (Lifting Column):

◇ Voltage: 24VDC or 12VDC, Permanent Magnet Motor Drive

◇ Standard Stroke: 100/150/200/250/300/350/400 mm, special

    stroke are available according to customer' requirement.

◇ Max. Thrust: 3000N(CT3000) / 6000N(CT6000)

◇ Free Load Speed: 5mm/s~12mm/s

◇ Rated Load Speed: 5mm/s

◇ Duty cycle: 10%

◇ Ambient temperature -25°C (-13F) to +65°C (149F)

◇ Standard protection class :IP 44

◇ Built-in integral limit switch, not adjustable after leaving factory

◇ Low noise design, dB<53(A); The inspection method is in accordance

◇ with DS/EN ISO3746 while linear actuator is unloaded.

◇ CE Certificated Lifting Column



CT-S LIFTING COLUMN (COLUMN LIFT)

Lifting Column

Specification of CT-S Lifting Column (Column Lift):

◇ Voltage: 220-230VAC

◇ Power: 480W

◇ Standard Stroke: 200mm, special stroke are available.

◇ Thrust: >3000N

◇ Rated Load Speed:13mm/s

◇ Ambient temperature:

◇ -25°C (-13F) to +65°C (149F)

◇ Standard protection class :IP 30

◇ Short-time-op. 2min

◇ Super low noise design, dB<40(A);

◇ The inspection method is in accordancewith DS/EN ISO3746 while linear actuator is unloaded.

◇ CE Certificated Lifting Column

For more information of CT-S Lifting Column, please contact us.
