AT SERIES LINEAR ACTUATOR

AT Series Linear Actuators (Linear Actuator) are widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments and so on.

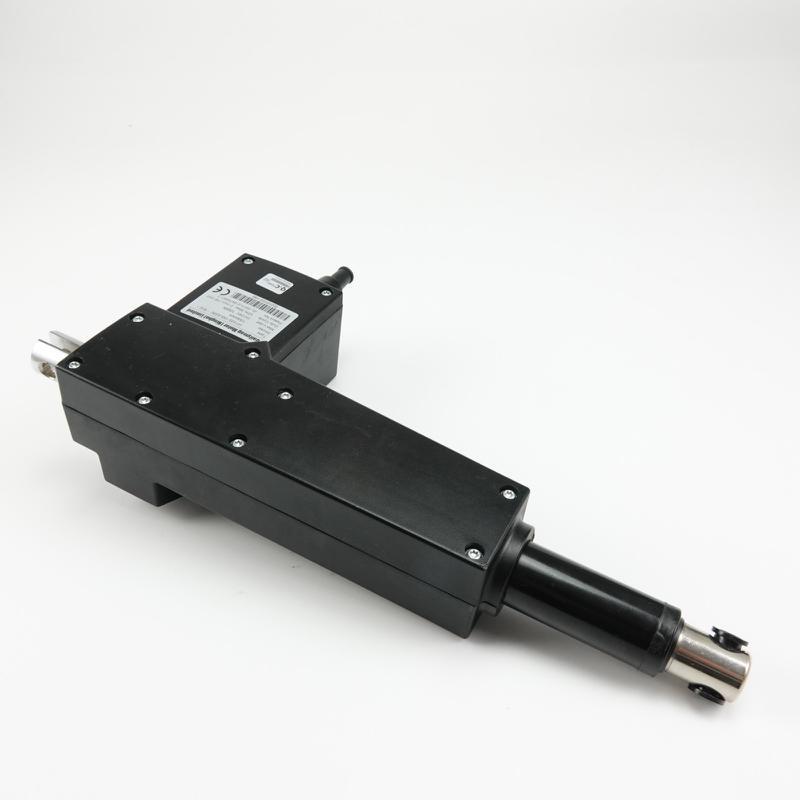

  linear actuator (AT series)

Specification of AT Series Linear actuators:

Max. Thrust 8000N, Max. Pull 5000N

Voltage of AT Linear Actuator: 24VDC or 12VDC, Permanent Magnet Motor Drive

Chrome Plated Piston Rod eye with slot

High Strength Plastic Housing and Gears

Elegant and compact design with small installation size

Standard protection class: IP 54

Built-in integral limit switch, not adjustable after leaving factory

Scratch and wear-resistant powder

Painting on outer tube Φ30mm

Stainless Steel Back Fixture

Strong wear and corrosion resistant stainless steel inner rod

Standard Stroke of linear actuator: 100/150/200/250/300/350/400 mm, special stroke are available according to customer' requirement.

Duty cycle: 10%, comment: 2 minutes continuous work followed by 18 minutes rest

Ambient temperature -5°C (23F) to +40°C (104F)

Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.

Overload protection

CE Certificated Linear Actuator

Availability in Black, White and Blue housing.

Standard Stroke of AT Series Linear Actuator and Min. Install Dimension

Standard Stroke

(mm)

<110

150

200

250

300

350

400

Min. Install Dimension

(mm)

AT-4000N

AT-6000N

>285

325

375

425

475

525

575

AT-8000N

>325

325

375

425

475

525

575



Technical Specification of AT Series Linear Actuator

Item No.

Max. Thrust

(N)

Max. Pull

(N)

Self-Lock

(N)

Speed (mm/s)

Duty Cycle

(min/h)

Current at full load(A)

Full load

No load

AT-4000N

4000

3000

4000

5

6.5

6

3.3

AT-6000N

6000

3000

6000

4.2

6.2

6

3.8

AT-8000N

8000

5000

6000

5

6.5

6

6
